Tools and human review

Inspect registered tools, run them directly, and route guarded actions through Studio approvals or operator questions.

Studio makes tool behavior visible before and during agent runs. The Tools page lists registered tools, input schemas, output schemas, approval metadata, and direct run controls.

Run the inspection surfaces example:

pnpm cookbook:studio:09

Then open:

http://localhost:4021/ui/tools

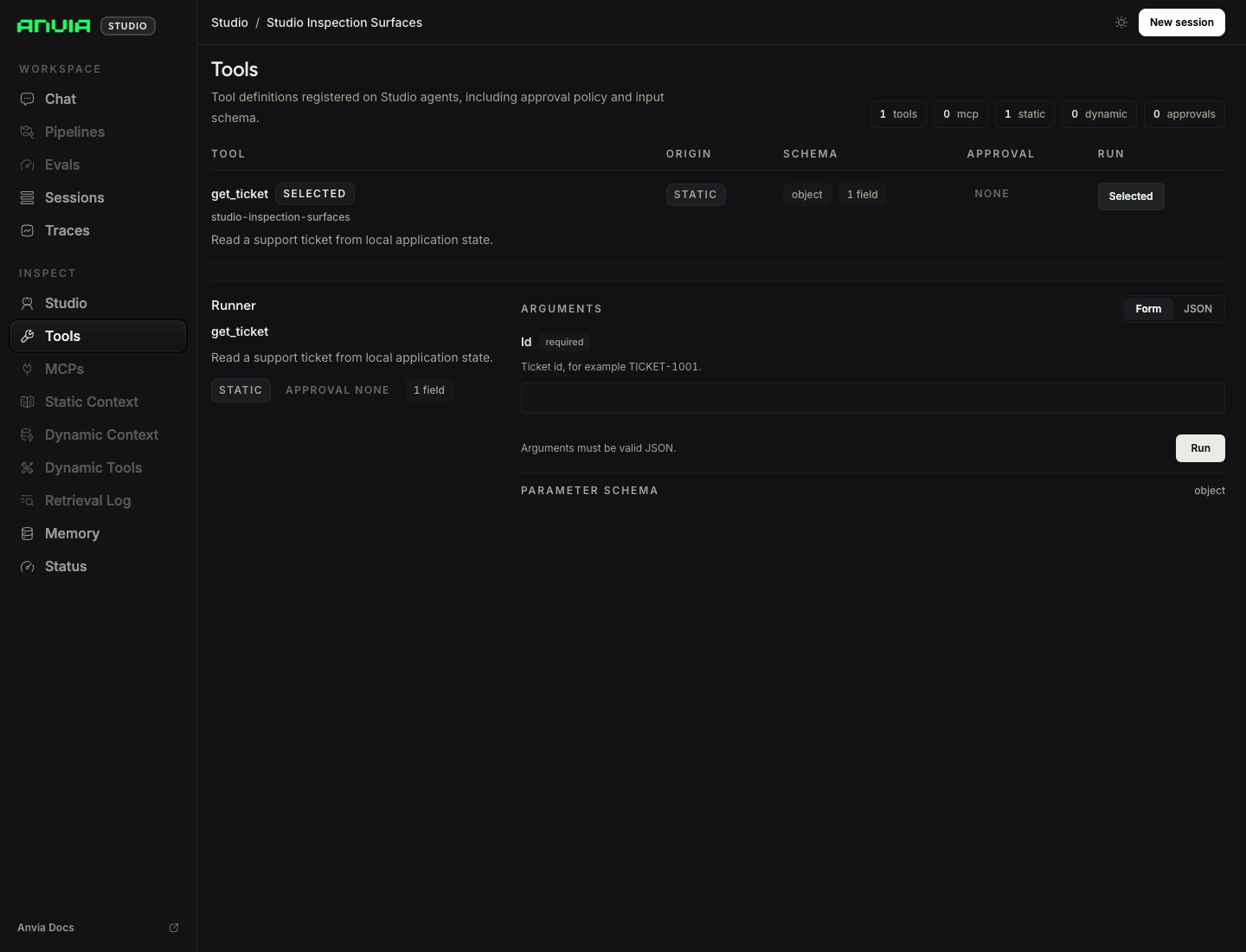

Studio tools page showing schema-driven arguments for a local support ticket tool.

Direct Tool Runs

09-inspection-surfaces.ts registers a get_ticket tool backed by local application state. The Tools page can run that tool directly with an argument object such as:

{
  "id": "TICKET-1001"
}

Use this before debugging the model path. If the direct tool run fails, the problem is in the tool contract or application boundary, not in prompting.

Tool Approvals

Run the approval example:

pnpm cookbook:studio:03

It demonstrates two approval paths:

  • issue_refund declares approval metadata on the tool itself.
  • cancel_order requests approval from an agent hook.

Both paths keep the model from completing the action until the operator approves or rejects the pending request in Studio.

Operator Questions

Run the human feedback example:

pnpm cookbook:studio:04

It defines an ask_question tool for missing operator input. The tool asks multiple bounded questions in one call, and Studio renders choices plus custom input before the agent continues.

Use this for values that should come from a human operator rather than from model inference: priority, escalation channel, reviewer notes, or a final confirmation value.

Sandbox Workspaces

Run the sandbox inspector example with Docker available:

pnpm cookbook:studio:15

It creates an ephemeral Node.js sandbox, seeds a small preview server, attaches tools from createSandboxTools(session) to the agent, and starts Studio. Open http://localhost:4021/sandboxes to browse live files, inspect the published preview port, and read managed process state and logs.

Studio discovers the session automatically from the agent tools. The application still owns its lifecycle, so the example passes session.destroy() to the managed studio.serve(...) shutdown hook. Studio waits for the port to bind, handles Ctrl+C or SIGTERM, and finishes sandbox cleanup before exiting.

  • examples/cookbook/09_studio/03-tool-approval.ts
  • examples/cookbook/09_studio/04-ask-question.ts
  • examples/cookbook/09_studio/09-inspection-surfaces.ts
  • examples/cookbook/09_studio/15-sandbox-inspector.ts
